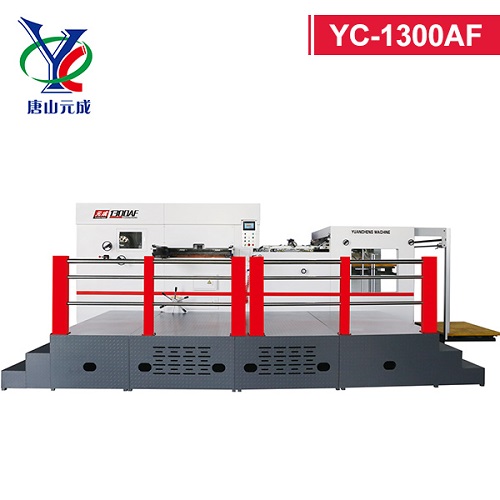

YC-1300AF Fully Automatic Slip Die Cutting Machine

YC-1300AF Fully Automatic Slip Die Cutting Machine, manufactured with international advanced technology, is the key equipment in the corrugated cardboard packaging process. For customers with cardboard business, one machine can be used for multiple purposes.
Product Description



1.The Introduction of The YC-1300AF Fully Automatic Slip Die Cutting Machine



YC-1300AF integrated slip-cutting machine, manufactured with international advanced technology, is the key equipment in the corrugated cardboard packaging process. For customers with cardboard business, one machine can be used for multiple purposes. This machine uses high-strength gripper row, and the advanced open-grip gripper mechanism can adapt to various types of corrugated cardboard. The front and rear positioning and side positioning mechanisms ensure the die-cutting accuracy of the paper. The main drive of this machine adopts worm gear and worm and a specially designed crankshaft connecting rod mechanism, which is connected in the form of a bearing bush to reduce the movement gap and avoid the impact of the worm gear and worm. It is made of alloy copper with excellent abrasiveness and has a long service life. The machine adopts the domestic advanced ternary cam indexing mechanism, pressure regulating system, pneumatic locking plate, pneumatic sampling, - 6-yuan printing machine---die cutting, waste removal, hot stamping, deep embossing overload protection system . Adopt imported high-precision chain drive, imported pneumatic clutch. The pneumatic locking mechanism can make the plate change and the pad plate more flexible and convenient. Programmable controller and man-machine interface, digital display of the machine's working speed, number of processed sheets, total running time, and machine fault display make troubleshooting very convenient. Realize automatic control and real-time monitoring of paper feeding, die-cutting, and paper delivery, and cooperate with safety devices in each part to make the operation safe and reliable. The die-cutting pressure can be adjusted separately before and after, and manual turning is convenient and labor-saving. Automatic paper delivery and neat paper loading make paper delivery convenient and tidy. The steel plate suspension function allows the steel plate to be pushed in and out easily.



YC- 1300AF Automatic slip integrated die-ctting machine is a cardboard die- ctting and corrugated die-ctting general machine developed by our company for domestic customer base. This machine adopts high-end model configuration, and makes more improvements in the itelligent transmission of equipment. The transmission mechanism is reasonable, the equipment has high precision and the operation is humanized.



2. The Local Introduction of The YC-1300AF Fully Automatic Slip Die Cutting Machine



YC-1300AF Fully Automatic Slip Die Cutting Machine

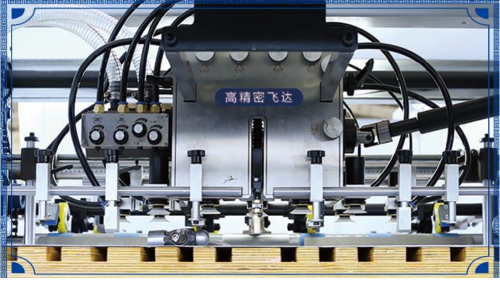

Feeder feeding department

▶ The pre-stacking paper mechanism and the main and auxiliary paper feeding devices realize continuous paper feeding without stopping.

▶ Four suction and five feeding paper feeding head with nine suction nozzles, strong suction and stable paper feeding. The suction nozzles can adjust the height, angle and suction air volume of the suction paper without stopping according to the changing conditions of the paper, which realizes both thickness and paper feeding accuracy. smooth.

▶ At the position of the paper feeding head, there is a high feeding device, which can effectively protect the feeding head.

▶ There is a stop gauge adjustment handwheel on the side of the paper feeder, which is convenient to determine the position of the paper stack.

▶ The paper stack is automatically lifted with the height of the paper, which is convenient for automatic paper feeding.

▶ Double sheet detection controller, effectively control double sheets and reduce waste.

▶ There are upper and lower limit switches on the inner side of the wall panel to ensure that the paper stack automatically stops at high and low positions.



YC-1300AF Fully Automatic Slip Die Cutting Machine

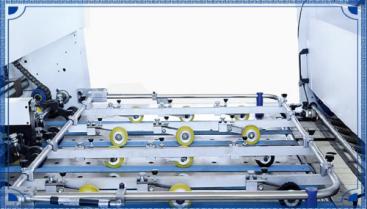

paper feeder

▶ The special feeding belt, stainless steel feeding board and high wear-resisting rubber roller can easily adjust the pressure of the rubber roller and the hair roller, and then change the pressure with the belt, so as to ensure the smoothness of the paper. Yuancheng printing machine---die cutting, waste removal, hot stamping, deep embossing.

▶ There is a paper in-position time adjustment handwheel on the paper feeding table to fine-tune the paper feeding time to match the time of the die-cutting part. Four optical fiber detection switches are used for the previous positioning, with high sensitivity, which can check the accuracy of the paper in place and avoid waste products.

▶ Equipped with left and right side gauges, and has two functions of push and pull, and its conversion is convenient and quick. The position and pressure of the side gauge can be adjusted to suit the side positioning of paper of different sizes and thicknesses. And equipped with optical fiber detection switch, always detect the accuracy of the paper in place.

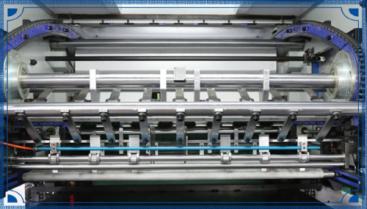

YC-1300AF Fully Automatic Slip Die Cutting Machine

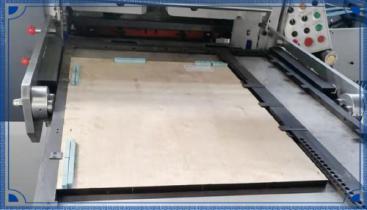

Die cutting

▶ It is controlled by PLC computer program, and the man-machine interface display screen is installed on the operation surface and the paper receiving surface to monitor the running status of the machine in real time, and dynamically monitor the input, output points and various faults of the computer program controller. The human-machine interface touch screen is installed in these two places, which is very convenient for troubleshooting and operation.

▶ Four optical fiber detection switches are used for the front gauge positioning to detect the precision of the front gauge, check the position of the paper, and avoid waste products.

▶ The side positioning adopts the dual-purpose design of pull and push gauge, and the position of pull and push can be adjusted arbitrarily to adapt to die-cutting of cardboard and corrugated paper, and there is an optical fiber to detect the accuracy of the paper in place.

▶ The stroke angle is 230°C, and the high-precision ternary cam indexing intermittent mechanism makes the tooth row run more smoothly.

▶ The imported pneumatic clutch and frequency modulation motor are used, and the braking is stable.

▶ The hot-pressing plate, knife template frame and die-cutting steel plate are positioned by locking plate, which is accurate and easy to operate.

▶ The hot-pressing plate and die-cutting knife template frame can be replaced with each other, so as to realize the conversion of hot-pressing function and die-cutting function.

▶ The lifting pressure is controlled by motor and electric digital display. It is easy to adjust the pressure on the touch screen of the human-machine interface, and the position and pressure of the die-cutting platform are accurate.

▶ The German Ives high-precision and high-strength tooth row rotating chain is pre-stretched for one-to-one pairing to ensure the accuracy of each group of tooth row chains.

▶ Using high-strength aluminum alloy tooth bars, the gripping paper is stable, which effectively prevents the tooth bars from vibrating. The front and rear positioning of the tooth row is increased - 9-yuan printing machine---die cutting, waste removal, bronzing, deep embossing, and an adjustable device is added. The wear error of the main chain or parts can be fine-tuned and compensated.

▶ The key components that bear the die-cutting pressure, such as the moving platform and the bottom platform, are integrally cast with pressure-resistant high-strength ductile iron at high temperature, and after a long time of stress relief tempering and aging treatment, it can ensure no deformation during high-pressure die-cutting , the pressure is stable.

▶ The main rotation is connected in the form of large modulus worm gear, worm drive, crankshaft and connecting rod, which reduces the movement gap and enables the machine to maintain stable operation under high speed and high pressure.

▶ The self-lubricating system ensures that the internal oil supply of the main drive is normal, and the machine stops automatically when there is no oil. The timing lubrication system automatically controls each lubrication point for regular quantitative oil injection lubrication.



YC-1300AF Fully Automatic Slip Die Cutting Machine



Waste removal department

▶ Simplified blowout drivetrain and optimized cam motion profile improve blowout stability.

▶ The waste removal structure consists of the upper waste removal frame, the waste removal negative template, and the lower waste removal frame template. According to the needs of touch-cutting products, punching waste removal or template waste removal can be selected.

▶ The upper, middle and lower waste removal adopts the central positioning method, which is convenient for plate changing, accurate positioning and stable operation.

▶ The waste removal negative template adopts a quick locking mechanism, which is easy to operate. It can be operated at the operation window during repeated installation, which reduces labor intensity



YC-1300AF Fully Automatic Slip Die Cutting Machine

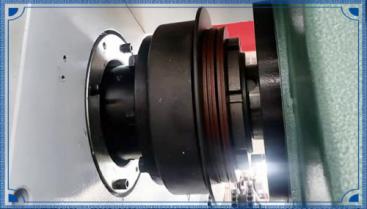

Torque Limiter, Intermittent Splitter

▶ Taiwan high-precision intermittent divider, long-term use can also ensure high positioning accuracy

▶ Taiwan torque limiter, with its sensitive limit protection performance, plays a very good role in protecting personal and mechanical safety against some man-made operation accidents.



Fully Automatic Slip Die Cutting Machine



Upgrade the manual non-stop delivery function to an electric non-stop delivery function. Save time, save labor, save space. The inner and outer double-layer tooth row chain guides make the machine run more stably and prolong its life.



Fully Automatic Slip Die Cutting Machine

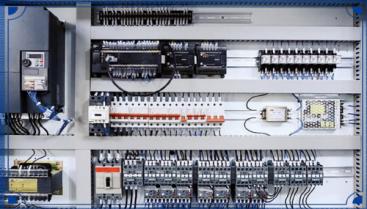

Electrical Cabinet

▶ The electrical system adopts advanced control systems such as PLC computer program controller and human-machine interface touch screen.

▶ The man-machine interface display screen is installed on the operation surface and the paper-receiving surface to monitor the running status of the machine from time to time, and monitor the input, output points and various faults of the computer program controller. Troubleshooting and operation are very convenient.

▶ The machine is equipped with sensors and safety device detection points: the upper limit of the main paper feed, the lower limit of the main paper feed, the upper limit of the paper pile, the upper limit of the paper feed, the upper limit of the main paper delivery, the alarm of the main delivery full electric bell, the lower limit of the main paper delivery , Operation front gauge electric eye, transmission front gauge electric eye, operation surface side gauge electric eye, transmission surface side gauge electric eye, empty car electric eye, counting photoelectric switch, anti-back paper control, lock plate detection, steel plate extraction detection, delivery chain detection, front Window detection, rear window detection, double sheet detection, observation window detection, paper accumulation detection, oil pressure protection switch, to ensure the normal operation of the machine and personal safety.



3. The Technical Parameter of The YC-1300AF Fully Automatic Slip Die Cutting Machine



Max.Paper Size

1320x930mm

Min.Paper Size

400x390mm

Max.Cutting Size

1300x920mm

Max.Pressure

350T

Sheet Thickness

Cardboard:200-2000g/㎡

8mm(max.thickness)

Die Precision

±0.15mm

Max.Cutting Speed

6000sheet/h

Total Power

13.5kw

Net Weight

16T

Overall Dimension

6600x4500x3300mm



4. Main Components Configuration Details



No.

Name

Model and Specification

manufacturer

Remark

1

worm gear

ZQAL9-4

German alloy material

With scraping

2

crankshaft

40Cr

domestic

Induction hardening

3

worm

41Cr

domestic

tempering, high frequency

4

platform

QT50-5

domestic

resin sand casting

5

frame

Quick plate lock

domestic

45# steel quenched and tempered

6

steel plate

65Mn

Shanghai

Hardness: HRC45-50

7

gripper row

Aviation hard aluminum alloy

Hafei



8

tooth row chain

IWS

Germany



9

Intermittent mechanism

250

Taiwan

ternary cam

10

Pneumatic clutch

304-9

Italian Yuyi



11

Inverter

Toshiba

Japan



12

Programmable Controllers



Omron



13

HMI

Weilon

Taiwan



14

PLC

Omron

Japan



15

main motor

WEG

Taiwan



16

Bolt Track Bearings

IKO

Japan



17

The electromagnetic valve

AIRTAC

Taiwan



18

button

Schneider

France



19

relay

Omron

Japan



20

contactor

Schneider

France



21

Photoelectric switch

Omron

Japan



22

Limit switch



Taiwan Tiande



23

cylinder

Shenchi

Shanghai



24

front fiber

PANASONIC

Matsushita



25

slider

ZQCSN6-6-3

German Alloy



26

give paper

Specially designed high precision feeder head

domestic



27

Worm gear bearing

NSK

Japan



28

reducer

Shengbang

Taiwan



29

Rotary joint

SMC

Japan





Random Accessories



name

quantity

Remark

name

quantity

Remark

Flat-blade screwdriver

1

150

Allen key

1 set



Phillips screwdriver

1

150

socket wrench

1 set

1 set

adjustable wrench

1

300

rocker wrench

1



Steel handle

1



pressure oil gun

1



Hammer

1



toolbox

1



oil can

1





Add random accessories and wearing spare parts

No.

name

quantity

1

plate frame

1 set

2

steel plate

1 piece

3

tooth row

1 set

4

fixed teeth

10

5

active tooth

10

6

help reed

10

7

nozzle rubber

16 (2 sets of 1 each)

8

paper split reed

12 (2 sets of 1 thin and thick)

9

electrical straps

5 pieces each

10

Spare dome head screw M6X8

8

11

Expansion bolt M8

2 pieces

12

Throat hoop∮30

8

13

paper feed board

1 set

14

Hair wheel (hard hair)

4

15

paper separation brush

2

16

Pressed cardboard

1 set

17

Torsion spring (A0714A.A0714B)∮2.5

7 pieces each

18

Rubber pad 200×200

6 pieces

19

Push gauge LG31.LG32

1 each

20

Paper stop C0637B

2 pieces

21

Elastic self-adhesive strip

1 plate

22

Rainproof silk machine cover

1



5. Tangshan Yuancheng Printing Service



The local agent service provider is responsible for the after-sales service of overseas business, and the product production cycle is 1 to 3 months.

After-sales service content:

1). The equipment provided by our company is guaranteed for one year (excluding consumables). During the warranty period, the local agent service provider is responsible for free maintenance for problems caused by the equipment itself.

2). Our company implements a whole-process tracking management system from the factory to the effective service life of the product. Establish product technical file management system and after-sales service guarantee system.

3). The company uses the "Yuancheng" brand as a guarantee to ensure the company's commitment to quality assurance to users. This guarantee has legal effect and will not be invalidated due to changes in the company's development.



Note: Due to the continuous upgrading of products, such as changes in technical parameters, equipment configuration, and appearance, the actual product shall prevail.
