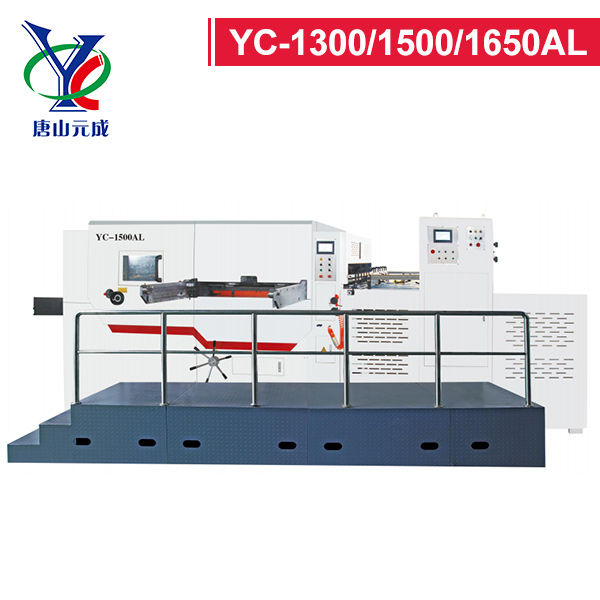

YC-1300/1500/1650AL Front Edge Feeding Flatbed Die Cutting Machine

YC-1300/1500/1650AL Front Edge Feeding Flatbed Die Cutting Machine or down-suction paper-feeding automatic flat-bed die-cutting machine is suitable for die-cutting and creasing of high-grade color boxes.
Product Description



1. The Introduction of The YC-1300/1500/1650AL Front Edge Feeding Flatbed Die Cutting Machine



YC-1300/1500/1650AL leading edge paper-feeding automatic flat-bed die-cutting machine or down-suction paper-feeding automatic flat-bed die-cutting machine is suitable for die-cutting and creasing of high-grade color boxes. This machine adopts high-strength lower opening teeth and gripper row, integral swinging front gauge, automatic push gauge, high-precision intermittent mechanism, pneumatic locking plate, pneumatic clutch, overload protection, and automatic paper delivery, which realizes short feeding distance and positioning. Accurate, stable die-cutting, neat delivery, and die-cutting without gripper, with high production efficiency. The application of microcomputer control realizes the automation of the whole process of the whole machine, and the working conditions and troubleshooting methods are displayed through the man-machine interface. The key components, control systems and fasteners are imported products and carefully assembled to ensure the safety and reliability of the machine. There are many sensors and safety devices to ensure the normal operation of the machine and personal safety.



2. The Local Introduction of The YC-1300/1500/1650AL Front Edge Feeding Flatbed Die Cutting Machine



YC-1300-1500-1650AL Front Edge Feeding Flatbed Die Cutting Machine

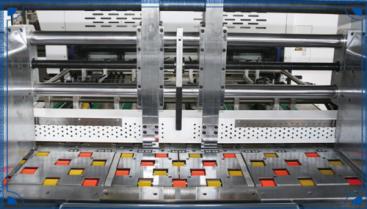

Front paper feeding section



▶ The uniquely designed leading edge feeding technology device adopts the non-stop down suction leading feeding method, and the large-capacity fan is equipped with frequency conversion adjustment, which relatively solves the problem of cardboard warping and makes the feeding smoother.

▶ The front paper baffle can be adjusted up and down according to the thickness of the paper; the automatically adjusted side baffles can quickly adjust the width of the paper basically in place, and can also adjust the position independently.

▶ The high-speed precision leading edge feeding system can stably convey various types and qualities of corrugated paper, with strong adaptability and effective protection of scratches and scratches on the printing surface. The variable frequency air volume adjustment and the special material feeding rubber roller can easily adapt to the feeding requirements of different corrugated paper from E tile to five layers, and ensure the smooth conveying of heavy and warped cardboard and the accurate positioning of the cardboard.

▶ The rear paper stop mechanism of the side partner paper stop device is all electrically adjusted, which improves the adjustment efficiency.



YC-1300-1500-1650AL Front Edge Feeding Flatbed Die Cutting Machine

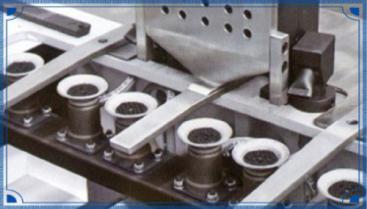

Lower suction paper feeding section

▶ Adopt down suction type non-stop feeding method

▶ Pneumatic side push baffle pushes the stack in advance

▶ The cardboard is fed into the platen roller by vacuum adsorption, which is not easy to scratch the printing surface.



YC-1300-1500-1650AL Front Edge Feeding Flatbed Die Cutting Machine

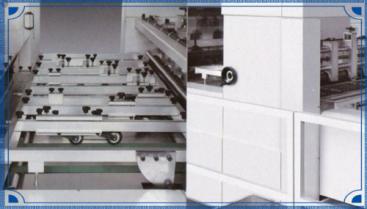

Feeding table side positioning part

▶ The paper conveying adopts high-power servo drive, and is equipped with a unique curved motion trajectory to ensure that the paper is in place accurately. - 8-Yuancheng printing machine---die cutting, waste removal, hot stamping, deep embossing

▶ Phase adjustment PLC control is more precise and precise.

▶ There are one set of side positioning push gauges on the left and right sides. The selection of the reference plane is large to ensure the positioning accuracy of the side feeding of the paper.

▶ The front gauge and side gauge are wide-width design, which enables high-precision die-cutting as well as mounted paper.

▶ The front gauge has a fine adjustment device for the left and right jaws, and the gauge can be aligned simply by turning the handwheel.

▶ The unique upper and lower front gauge cooperates with the gripper mechanism to ensure that the warped paper can be transported smoothly and the die-cutting accuracy is guaranteed.



YC-1300-1500-1650AL Front Edge Feeding Flatbed Die Cutting Machine

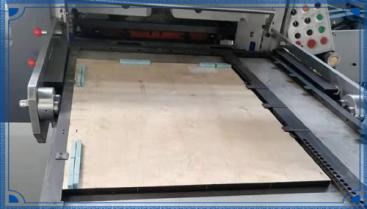

Die cutting

▶ Crankshaft linkage type high-precision plane movable die-cutting table.

▶ Precision imported gripper row transmission chain. The precision of the machine is guaranteed; the whole machine is equipped with 8 gripper rows, and is equipped with 12 movable gripper sheets and supporting fixed dental pillows; the front and rear pre-positioning of the teeth rows are accurate to ensure accurate and consistent step distance positioning.

▶ Each paper detection sensor monitors the whole process of paper and reduces unnecessary paper waste.

▶ The central positioning system of the template makes the plate change simple and quick; large-screen electronic fault display and speed display, (color LCD) monitor the operation of the whole machine in time; •Bronzing •Deep embossing.

▶ Each part of the forced lubrication system adopts cooling circulation device with oil pressure display and oil cut-off alarm device.

▶ The main drive is mainly driven by imported belts and connecting rods, which reduces the impact of the main engine during movement and uses imported belts to ensure the service life and the timeliness and convenience of after-sales service.

▶ The high-quality high-torque cam divider drives the paper feeder row to make the operation more stable, reducing the phenomenon of loose plates in the process of die-cutting and cleaning; and is equipped with a high-torque overload protection system to protect the machine from being damaged when overloaded. The central positioning system adopted by the die-cutting board frame conforms to international standards, making it easier and faster to replace the blade. Save changeover time. When the tooth row needs to stay in the die-cutting part, the movable positioning is adopted to make the die-cutting positioning more accurate.



YC-1300-1500-1650AL Front Edge Feeding Flatbed Die Cutting Machine

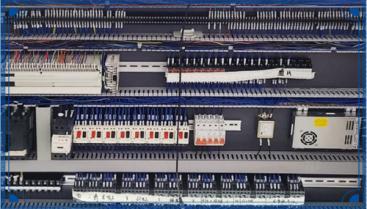

Electronic Control Department

▶ This machine adopts imported Schneider, Omron and other original components to improve the control quality.

▶ Using Schneider programmable PLC control system, the circuit control program is simple, and the maintenance is simple.



3. The Technical Parameter of The YC-1300/1500/1650AL Front Edge Feeding Flatbed Die Cutting Machine



Model

YC-1300AL

YC-1500AL

YC-1650AL

Max.Paper Size

1320x980mm

(1300x950mm)

1500x1200mm

(1500x1100mm)

1670x1210mm

Min.Paper Size

550x450mm

550x450mm

1650x1200mm

Max.Cutting Size

1300x960mm

(1280x940mm)

1490x1180mm

(1480x1080mm)

600x500mm

Max.Pressure

350T

400T

450T

Sheet Thickness

corrugated paper≤

8mm(max.thickness)

corrugated paper≤

8mm(max.thickness)

corrugated paper≤

8mm(max.thickness)

Die Precision

±0.5mm

±0.5mm

±0.5mm

Max.Cutting Speed

≥4500sheet/h

≥4500sheet/h

4000sheet/h

Total Power

25kw

32kw

35kw

Net Weight

21T

26T

28T

Overall Dimension

10900x4700x2900mm(

No pre-coded paper, no downtime

give paper)

12500x4900x2900mm

(paper feeder

3000x3300x2300)

12900x5000x2900mm

((Without Pedal))



No.

Name

Model and Specification

manufacturer

Remark

1

worm gear

ZQAL9-4

German alloy material

With scraping

2

crankshaft

40Cr

domestic

Induction hardening

3

worm

41Cr

domestic

tempering, high frequency

4

platform

QT50-5

domestic

resin sand casting

5

frame

Quick plate lock

domestic

45# steel quenched and tempered

6

steel plate

65Mn

Shanghai

Hardness: HRC45-50

7

gripper row

Aviation hard aluminum alloy

Hafei



8

tooth row chain

IWS

Germany



9

Intermittent mechanism

250

Taiwan

ternary cam

10

Pneumatic clutch

304-9

Italian Yuyi



11

Inverter

Toshiba

Japan



12

Programmable Controllers



Omron



13

HMI

Weilon

Taiwan



14

PLC

Omron

Japan



15

main motor

WEG

Taiwan



16

Bolt Track Bearings

IKO

Japan



17

The electromagnetic valve

AIRTAC

Taiwan



18

button

Schneider

France



19

relay

Omron

Japan



20

contactor

Schneider

France



21

Photoelectric switch

Omron

Japan



22

Limit switch



Taiwan Tiande



23

cylinder

Shenchi

Shanghai



24

front fiber

PANASONIC

Matsushita



25

slider

ZQCSN6-6-3

German Alloy



26

give paper

Specially designed high precision feeder head

domestic



27

Worm gear bearing

NSK

Japan



28

reducer

Shengbang

Taiwan



29

Rotary joint

SMC

Japan





Random Accessories



name

quantity

Remark

name

quantity

Remark

Flat-blade screwdriver

1

150

Allen key

1 set



Phillips screwdriver

1

150

socket wrench

1 set

1 set

adjustable wrench

1

300

rocker wrench

1



Steel handle

1



pressure oil gun

1



Hammer

1



toolbox

1



oil can

1





Add random accessories and wearing spare parts



No.

name

quantity

1

plate frame

1 set

2

steel plate

1 piece

3

tooth row

1 set

4

fixed teeth

10

5

active tooth

10

6

help reed

10

7

nozzle rubber

16 (2 sets of 1 each)

8

paper split reed

12 (2 sets of 1 thin and thick)

9

electrical straps

5 pieces each

10

Spare dome head screw M6X8

8

11

Expansion bolt M8

2 pieces

12

Throat hoop∮30

8

13

paper feed board

1 set

14

Hair wheel (hard hair)

4

15

paper separation brush

2

16

Pressed cardboard

1 set

17

Torsion spring (A0714A.A0714B)∮2.5

7 pieces each

18

Rubber pad 200×200

6 pieces

19

Push gauge LG31.LG32

1 each

20

Paper stop C0637B

2 pieces

21

Elastic self-adhesive strip

1 plate

22

Rainproof silk machine cover

1



5. Tangshan Yuancheng Printing Service



The local agent service provider is responsible for the after-sales service of overseas business, and the product production cycle is 1 to 3 months.

After-sales service content:

1). The equipment provided by our company is guaranteed for one year (excluding consumables). During the warranty period, the local agent service provider is responsible for free maintenance for problems caused by the equipment itself.

2). Our company implements a whole-process tracking management system from the factory to the effective service life of the product. Establish product technical file management system and after-sales service guarantee system.

3). The company uses the "Yuancheng" brand as a guarantee to ensure the company's commitment to quality assurance to users. This guarantee has legal effect and will not be invalidated due to changes in the company's development.



Note: Due to the continuous upgrading of products, such as changes in technical parameters, equipment configuration, and appearance, the actual product shall prevail.
