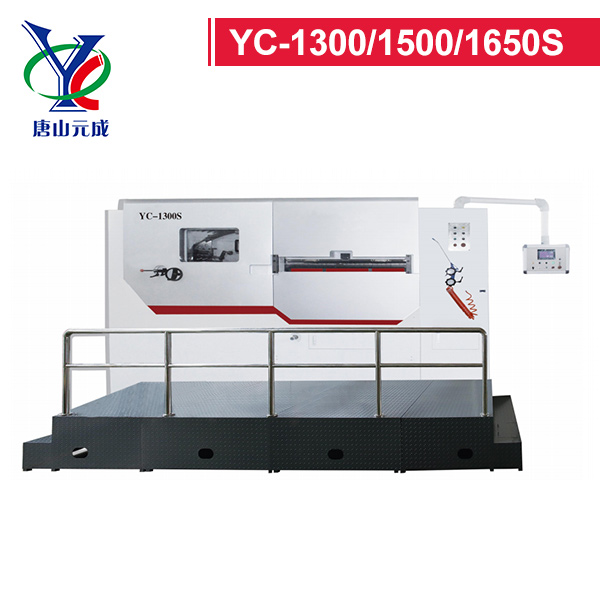

YC-1300/1500/1650S Semi-automatic Die-cutting and Creasing Machine

YC-1300/1500/1650S Semi-automatic Die-cutting and Creasing Machine and Creasing Machine is a special equipment developed by our company in combination with the superior performance of similar products at home and abroad, which is suitable for high-grade color boxes and color box die-cutting.
Product Description



1. The Introduction of The YC-1300/1500/1650S Semi-automatic Die-cutting and Creasing Machine



YC-S series die-cutting and creasing machine is a special equipment developed by our company in combination with the superior performance of similar products at home and abroad, which is suitable for high-grade color boxes and color box die-cutting. The machine adopts high-strength gripper row, and the advanced open-grip gripper mechanism can adapt to various types of cardboard, cardboard and corrugated paper; the front and rear and side positioning mechanisms ensure the die-cutting accuracy of the paper. Equipped with high-precision intermittent mechanism; fast-acting pneumatic clutch, pneumatic locking plate. Using programmable controller and man-machine interface, the working speed, number of sheets processed and total running time of the machine are digitally displayed; the fault display of the machine makes the troubleshooting operation very convenient. The frequency converter is used to control the main motor, stepless speed regulation, and the operation is stable. The machine is equipped with sensors and safety devices in many places to ensure the normal operation of the machine and personal safety. The die-cutting pressure can be adjusted separately before and after, the manual turning is convenient and labor-saving, and it can also perform die-cutting without a mouth.



2. YC-1300/1500/1650S Semi-automatic Die-cutting and Creasing Machine



1



Die cutting

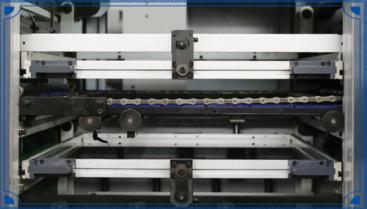

▶ It is controlled by PLC computer program, and the man-machine interface display screen is installed on the operation surface and the paper receiving surface to monitor the running status of the machine in real time, and dynamically monitor the input, output points and various faults of the computer program controller. The human-machine interface touch screen is installed in these two places, which is very convenient for troubleshooting and operation.

▶ Four optical fiber detection switches are used for the front gauge positioning to detect the precision of the front gauge, check the position of the paper, and avoid waste products.

▶ The side positioning adopts the dual-purpose design of pull and push gauge, and the position of pull and push can be adjusted arbitrarily to adapt to die-cutting of cardboard and corrugated paper, and there is an optical fiber to detect the accuracy of the paper in place.

▶ The stroke angle is 230°C, and the high-precision ternary cam indexing intermittent mechanism makes the tooth row run more smoothly.

▶ The imported pneumatic clutch and frequency modulation motor are used, and the braking is stable.

▶ The hot-pressing plate, knife template frame and die-cutting steel plate are positioned by locking plate, which is accurate and easy to operate.

▶ The hot-pressing plate and die-cutting knife template frame can be replaced with each other, so as to realize the conversion of hot-pressing function and die-cutting function.

▶ The lifting pressure is controlled by motor and electric digital display. It is easy to adjust the pressure on the touch screen of the human-machine interface, and the position and pressure of the die-cutting platform are accurate.

▶ The German Ives high-precision and high-strength tooth row rotating chain is pre-stretched for one-to-one pairing to ensure the accuracy of each group of tooth row chains.

▶ Using high-strength aluminum alloy tooth bars, the gripping paper is stable, which effectively prevents the tooth bars from vibrating. The front and rear positioning of the tooth row is increased - 9-yuan printing machine---die cutting, waste removal, bronzing, deep embossing, and an adjustable device is added. The wear error of the main chain or parts can be fine-tuned and compensated.

▶ The key components that bear the die-cutting pressure, such as the moving platform and the bottom platform, are integrally cast with pressure-resistant high-strength ductile iron at high temperature, and after a long time of stress relief tempering and aging treatment, it can ensure no deformation during high-pressure die-cutting , the pressure is stable.

▶ The main rotation is connected in the form of large modulus worm gear, worm drive, crankshaft and connecting rod, which reduces the movement gap and enables the machine to maintain stable operation under high speed and high pressure.

▶ The self-lubricating system ensures that the internal oil supply of the main drive is normal, and the machine stops automatically when there is no oil. The timing lubrication system automatically controls each lubrication point for regular quantitative oil injection lubrication.



1



main drive

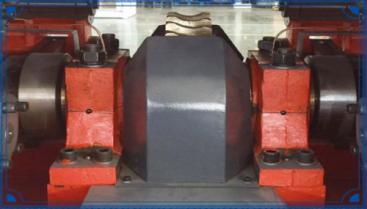

▶ Die-cutting action adopts worm gear and specially designed crankshaft connecting rod mechanism, which has the characteristics of low noise, high pressure, high precision and long mechanical life. The worm gear, worm and crankshaft are all processed by CNC grinding.

▶ The main body, upper and lower die-cutting platforms are all made of high-grade ductile iron and treated with aging. It has the characteristics of wear resistance, large mechanical flat pressure and low deformation coefficient.

▶ The main drive lubrication adopts oil-immersed and imported high-pressure gear pump uninterrupted lubrication. The oil circuit is equipped with an oil filter cleaning device and an abnormal oil pressure protection device to ensure that the inside of the machine is always new after several years. The clutch adopts a high-torque pneumatic clutch, which has fast response speed and large torque, which is convenient for starting, emergency stop, jogging and other accurate actions, without maintenance, and has a long service life.



1



Electrical cabinet

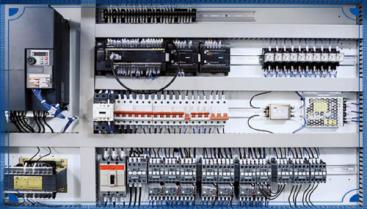

▶ The electronic control system adopts Japan Omron PLC computer automatic control, Japan Toshiba inverter, Taiwan EVIEW touch screen, France Schneider and other international famous brands.

▶ The man-machine interface display system can display various working conditions, point out the fault location and propose solutions.

▶ The machine is equipped with sensors and the upper limit of the main paper delivery, the alarm of the main paper delivery bell, the lower limit of the main paper delivery, and the safety device to ensure the normal operation of the machine and personal safety, the upper limit of the main paper feeding, the lower limit of the main paper feeding, the steel plate extraction detection, Paper delivery chain detection, rear window detection, abnormal paper feeding detection, oil pressure protection switch.



1



Waste removal department

▶ Simplified blowout drivetrain and optimized cam motion profile improve blowout stability

▶ The waste removal structure consists of the upper waste removal frame, the waste removal negative template, and the lower waste removal frame template. According to the needs of touch-cutting products, punching waste removal or template waste removal can be selected

▶ The upper, middle and lower waste removal adopts the central positioning method, which is convenient for plate changing, accurate positioning and stable operation.

▶ The waste removal negative template adopts a quick locking mechanism, which is easy to operate. It can be operated at the operation window during repeated installation, which reduces the labor intensity.

Paper delivery department

▶ Independent precoding paper mechanism, minimize paper change time and improve mechanical production efficiency.

▶ The imported photoelectricity controls the lifting height of the paper stack. It can automatically control the optimal paper feeding position regardless of the warped paper or the flat paper. The paper feeding is easy and continuous, up to 4500 sheets/hour.

▶ Linear bearings are used for delivery and aligning, with simple structure and neat delivery.

▶ Humanized design ensures that the paper can be easily pulled out after die-cutting, and the paper change time is controlled within one minute.



3. The Technical Parameter of The YC-1300/1500/1650S Semi-automatic Die-cutting and Creasing Machine



Model

YC-1300S

YC-1500S

YC-1650S

Max.Paper Size

1320x980mm

(1300x920mm)

1500x1200mm

(1500x1100mm)

1650x1200mm

Min.Paper Size

550x450mm

550x500mm

650x600mm

Max.Cutting Size

1300x970mm

(1280x900mm)

1490x1180mm

(1480x1080mm)

1650x1180mm

Max.Pressure

350T

400T

450T

Sheet Thickness

corrugated paper 8mm

corrugated paper 8mm

corrugated paper 8mm

Die Precision

±0.5mm

±0.5mm

±0.5mm

Max.Cutting Speed

≥4500sheet/h

≥4500sheet/h

4000sheet/h

Total Power

13.5kw

13.5kw

15.75kw

Net Weight

about 14T

17T

17.8T

Overall Dimension

5840x4400x2630mm

(With Pedal)

6000x4600x2250mm

(With Pedal)

6500x5200x2560mm

(With Pedal)



No.

Name

Model and Specification

manufacturer

Remark

1

worm gear

ZQAL9-4

German alloy material

With scraping

2

crankshaft

40Cr

domestic

Induction hardening

3

worm

41Cr

domestic

tempering, high frequency

4

platform

QT50-5

domestic

resin sand casting

5

frame

Quick plate lock

domestic

45# steel quenched and tempered

6

steel plate

65Mn

Shanghai

Hardness: HRC45-50

7

gripper row

Aviation hard aluminum alloy

Hafei



8

tooth row chain

IWS

Germany



9

Intermittent mechanism

250

Taiwan

ternary cam

10

Pneumatic clutch

304-9

Italian Yuyi



11

Inverter

Toshiba

Japan



12

Programmable Controllers



Omron



13

HMI

Weilon

Taiwan



14

PLC

Omron

Japan



15

main motor

WEG

Taiwan



16

Bolt Track Bearings

IKO

Japan



17

The electromagnetic valve

AIRTAC

Taiwan



18

button

Schneider

France



19

relay

Omron

Japan



20

contactor

Schneider

France



21

Photoelectric switch

Omron

Japan



22

Limit switch



Taiwan Tiande



23

cylinder

Shenchi

Shanghai



24

front fiber

PANASONIC

Matsushita



25

slider

ZQCSN6-6-3

German Alloy



26

give paper

Specially designed high precision feeder head

domestic



27

Worm gear bearing

NSK

Japan



28

reducer

Shengbang

Taiwan



29

Rotary joint

SMC

Japan





Random Accessories



name

quantity

Remark

name

quantity

Remark

Flat-blade screwdriver

1

150

Allen key

1 set



Phillips screwdriver

1

150

socket wrench

1 set

1 set

adjustable wrench

1

300

rocker wrench

1



Steel handle

1



pressure oil gun

1



Hammer

1



toolbox

1



oil can

1





Add random accessories and wearing spare parts

No.

name

quantity

1

plate frame

1 set

2

steel plate

1 piece

3

tooth row

1 set

4

fixed teeth

10

5

active tooth

10

6

help reed

10

7

nozzle rubber

16 (2 sets of 1 each)

8

paper split reed

12 (2 sets of 1 thin and thick)

9

electrical straps

5 pieces each

10

Spare dome head screw M6X8

8

11

Expansion bolt M8

2 pieces

12

Throat hoop∮30

8

13

paper feed board

1 set

14

Hair wheel (hard hair)

4

15

paper separation brush

2

16

Pressed cardboard

1 set

17

Torsion spring (A0714A.A0714B)∮2.5

7 pieces each

18

Rubber pad 200×200

6 pieces

19

Push gauge LG31.LG32

1 each

20

Paper stop C0637B

2 pieces

21

Elastic self-adhesive strip

1 plate

22

Rainproof silk machine cover

1
