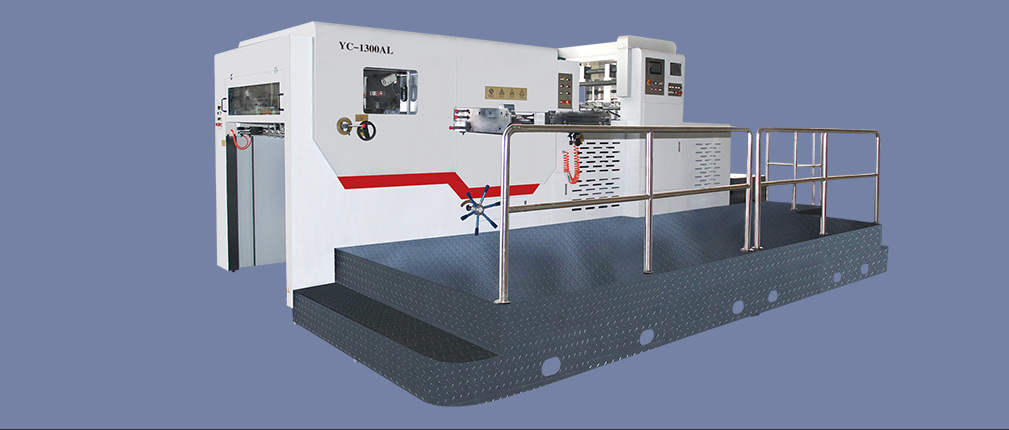

YC-1300AL Front Edge Feeding Flatbed Die Cutting Machine
Features /
YC-1300AL leading edge paper-feeding automatic flat-bed die-cutting machine or down-suction paper-feeding automatic flat-bed die-cutting machine is suitable for die-cutting and creasing of high-grade color boxes. This machine adopts high-strength lower opening teeth and gripper row, integral swinging front gauge, automatic push gauge, high-precision intermittent mechanism, pneumatic locking plate, pneumatic clutch, overload protection, and automatic paper delivery, which realizes short feeding distance and positioning. Accurate, stable die-cutting, neat delivery, and die-cutting without gripper, with high production efficiency. The application of microcomputer control realizes the automation of the whole process of the whole machine, and the working conditions and troubleshooting methods are displayed through the man-machine interface. The key components, control systems and fasteners are imported products and carefully assembled to ensure the safety and reliability of the machine. There are many sensors and safety devices to ensure the normal operation of the machine and personal safety.
Technical Parameters / | Model | YC-1300AL |
| Max.Paper Size | 1320x980mm |
| Min.Paper Size | 550x450mm |
| Max.Cutting Size | 1300x960mm |
| Max.Pressure | 300T |
| Sheet Thickness | 瓦楞纸（Corrugate board）8mm(max.thickness) |
| Die Precision | ±0.5mm |
| Max.Cutting Speed | 4500s/h |
| Total Power | 25kw |
| Net Weight | 21T |
| Overall Dimension | 10900x4700x2900mm(不含预码纸，不停机给纸) |
