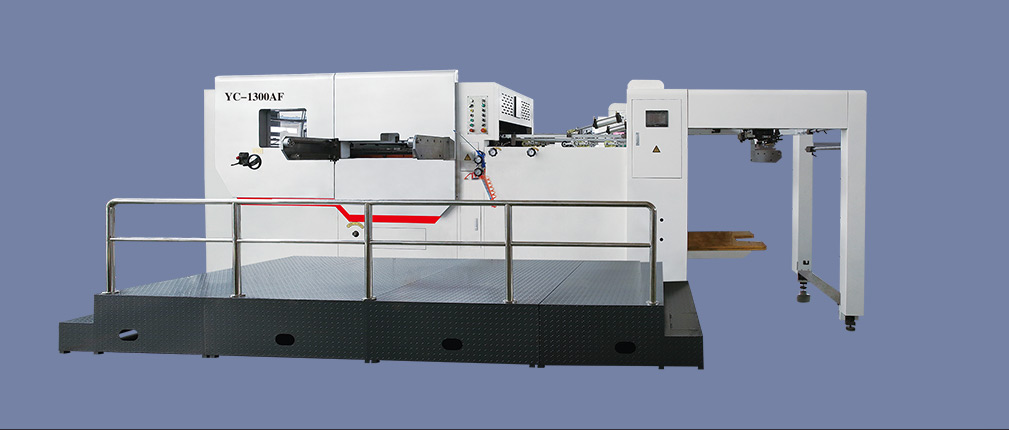

YC-1300AF Fully Automatic Slip Die Cutting Machine
Features /
YC-1300AF integrated slip-cutting machine, manufactured with international advanced technology, is the key equipment in the corrugated cardboard packaging process. For customers with cardboard business, one machine can be used for multiple purposes. This machine uses high-strength gripper row, and the advanced open-grip gripper mechanism can adapt to various types of corrugated cardboard. The front and rear positioning and side positioning mechanisms ensure the die-cutting accuracy of the paper. The main drive of this machine adopts worm gear and worm and a specially designed crankshaft connecting rod mechanism, which is connected in the form of a bearing bush to reduce the movement gap and avoid the impact of the worm gear and worm. It is made of alloy copper with excellent abrasiveness and has a long service life. The machine adopts the domestic advanced ternary cam indexing mechanism, pressure regulating system, pneumatic locking plate, pneumatic sampling, - 6-yuan printing machine---die cutting, waste removal, hot stamping, deep embossing overload protection system . Adopt imported high-precision chain drive, imported pneumatic clutch. The pneumatic locking mechanism can make the plate change and the pad plate more flexible and convenient. Programmable controller and man-machine interface, digital display of the machine's working speed, number of processed sheets, total running time, and machine fault display make troubleshooting very convenient. Realize automatic control and real-time monitoring of paper feeding, die-cutting, and paper delivery, and cooperate with safety devices in each part to make the operation safe and reliable. The die-cutting pressure can be adjusted separately before and after, and manual turning is convenient and labor-saving. Automatic paper delivery and neat paper loading make paper delivery convenient and tidy. The steel plate suspension function allows the steel plate to be pushed in and out easily.
Technical Parameters / | Model | YC-1300AF |
| Max.Paper Size | 1320x980mm |
| Min.Paper Size | 400x390mm |
| Max.Cutting Size | 1300x970mm |
| Max.Pressure | 300T |
| Sheet Thickness |
纸板（Cardboard）:200-2000g/m2 瓦楞纸（Corrugate board）8mm(max.thickness) |
| Die Precision | ±0.5mm |
| Max.Cutting Speed | 6000s/h |
| Total Power | 13.5kw |
| Net Weight | 16T |
| Overall Dimension | 6600x4500x3300mm |
