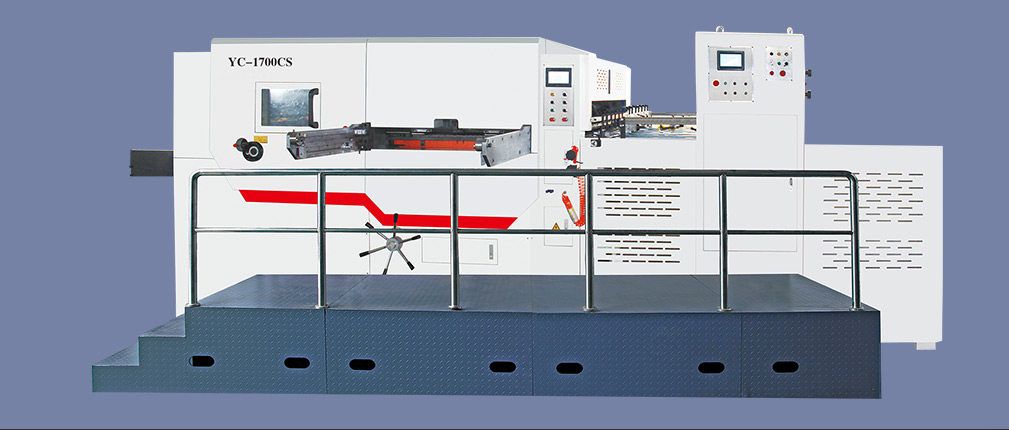

YC-1700CS Full-cleaning Corrugated Paper Die-cutting Machine
Features /
The main drive of this machine adopts worm gear and worm and a specially designed crankshaft connecting rod mechanism, which is connected in the form of a bearing bush to reduce the movement gap and avoid the impact of the worm gear and worm. The aluminum bronze with excellent abrasiveness has a long service life. The machine adopts the domestic advanced ternary cam indexing mechanism, pressure regulating device, pneumatic locking plate, pneumatic sampling, and overload protection device. It adopts imported high-precision chain drive and imported pneumatic clutch.
Adopt imported pneumatic clutch, stable and reliable combination and separation, small braking angle, can transmit large torque; programmable controller and human-machine interface, digital display of the working speed of the machine, the number of sheets processed, the total running time, and the fault display of the machine. The exclusion operation is very convenient. Realize automatic control and real-time monitoring of paper feeding, die cutting, waste removal and paper delivery, and cooperate with safety devices in each part to make the operation safe and reliable.
Technical Parameters / | Model | YC-1700CS | ||
| Min.Paper Size | 600x550mm | ||
| Max.Paper Size | 1680x1180mm | ||
| Max.Pressure | 400T | ||
| Sheet Thickness | 瓦楞纸≤8mm(max.thickness)硬纸板 min1.5mm | ||
| Die Precision | ±0.5mm | ||
| Max.Cutting Speed | 5000s/h | ||
| Net Weight | 29T | ||
| Overall Dimension | 8600x3160x2820mm | ||
