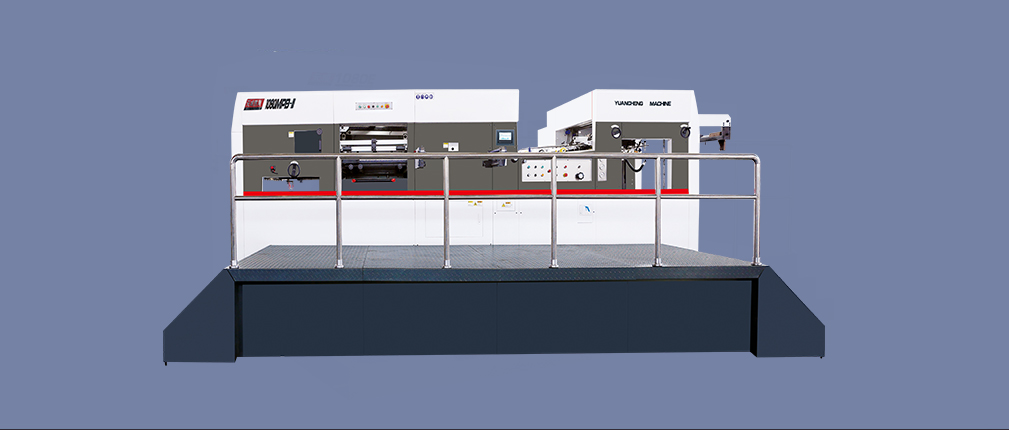

YC-1060MPB-Ⅱ Flatbed Die-cutting And Cleaning Machine
Features /
Performance Characteristics of The YC-1060MPB-Ⅱ Flatbed Die-cutting And Cleaning Machine: High-quality made Feida, 4 suction cups for paper feeding, 4 suction cups for paper feeding, to ensure stable and fast paper feeding; the side and front return belts are photoelectric alignment, and the sensitivity can be adjusted; the transfer plate is made of German-made stainless steel to make the paper smooth.
Technical Parameters / | Model | YC-1060MPB- II | ||||
| Max.Sheet Size | 1060x790mm | Max.Die Cutting Size | 420x370mm | ||
| Max.Die Cutting Size | 1060x780mm | Min.Front Margin | 5mm | ||
| Die Cutting Precision | ±0.1mm | Max.Die Cutting Pressure | 350T | ||
| Cardboard Specification | 100～2000g/m2 | Corrugated Paper | ≤4mm | ||
| Max.Die Cutting Speed | 7000sheet/h | Max.Speedwith Stripping | 6500sheet/h | ||
| Max.Height of Feeding Pile | 1630mm | Max.Height of Delivery Piole | 1350mm | ||
| Total Power | 22kw | Total Weight | 19T | ||
| Overall Dimension | 7460x3930x2530mm | ||||
