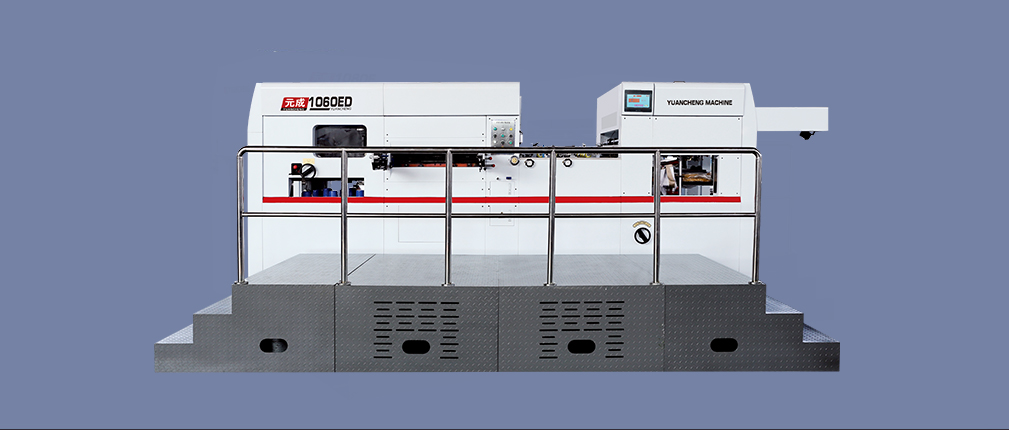

YC-1060FED Automatic Deep Embossing Hot Stamping Machine
Features /
YC--1060ED automatic deep embossing die-cutting machine is the third generation product developed by our company. The machine adopts the modern advanced level of design, research and development capabilities and realizes the automation of paper feeding, die cutting, deep embossing, paper delivery, counting, man-machine interface, and testing. Non-stop continuous production, improve production efficiency. It has the characteristics of convenient operation, safety and reliability, high speed, high pressure, high precision and good quality. 9. The overload protection device is equipped with a torque limiter in the pointer watch box to better protect the safety of the operator and the machine.
Technical Parameters / | Model | YC-1060ED |
| Max.Paper Size | 1060x760mm |
| Min.Paper Size | 400x370mm |
| Max.Cutting Size | 1045x750mm |
| Max.Cutting Speed | 6500s/h |
| Sheet Thickness | 纸板（Cardboard）:100-2000g/m2 |
| Max.Hot Pressing Size | 1040X750mm |
| Design Pressure | 600T |
| Die Precision | ±0.1mm |
| Max.Pressure | 600T |
| Total Power | 52kw |
| Net Weight | 19.5T |
| Overall Dimension | 6530x4500x2350mm |
