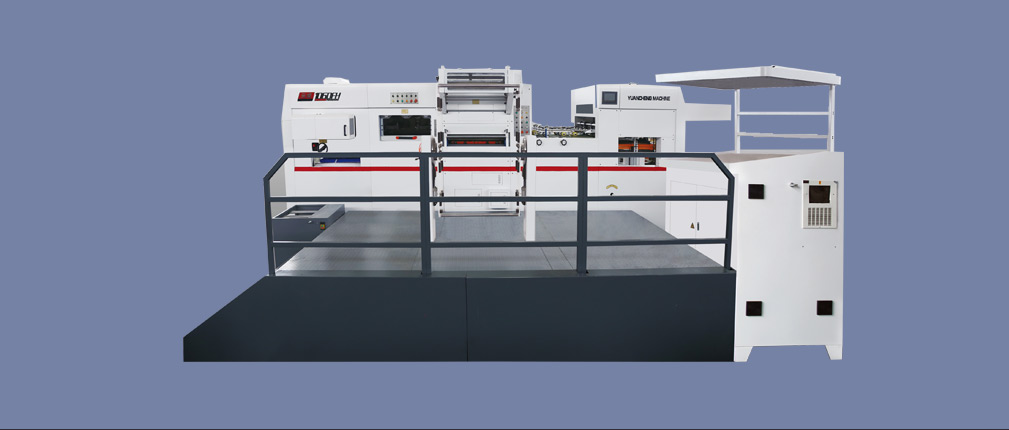

YC-1060F/FH Flat Press Flat Die Cutting and Stamping Machine
Features /
YC--1060F automatic hot stamping die-cutting and creasing machine is the third generation product developed by our company. It is the main equipment for die-cutting, creasing, cold and hot embossing and hot stamping of cartons, cartons or trademarks in the packaging and decoration industry.
Technical Parameters / | 型号 | YC-1060F/FH | ||||||||
| 最大输纸尺寸 | 1060x760mm | 全息防伪装置 | 3轴 3shafts | ||||||
| 最小输纸尺寸 | 400x350mm | 电化铝送箔伺服系统 |
纵向 3轴 横向 2轴 |
||||||
| 最大模切尺寸 | 1050x750mm | 电化铝放箔最大直径 | 纵向 2 轴 横向 3轴 | ||||||
| 最大烫金尺寸 | 1050x745mm | 温控区 | 16个独立区域 | ||||||
| 纸张规格 | 100-2000g/m2 | 最高工作速度 | 7000sheet/h | ||||||
| 瓦楞纸厚度 | ≤4mm | 叼口空白 | 4~12mm | ||||||
| 普通烫印速度 | 6500sheet/h | 最大工作压力 | 400T/650T | ||||||
| 普通烫印精度 | ≤±0.075mm | 总功率 | 53.95kw | ||||||
| 全息烫印速度 | 5500sheet/h | 总重量 | 18T/21T | ||||||
| 全息烫印精度 | ≤±0.2mm | 外形尺寸 | 7650x4560x2730mm(含踏板) | ||||||
